Euresys 3603 Coaxlink Quad CXP-12

At A Glance

Four-connection CoaXPress CXP-12 frame grabber

  • Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
  • PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
  • Feature-rich set of 20 digital I/O lines
  • Extensive camera control functions
  • Memento Event Logging Tool

Benefits

  • PCIe 3.0 (Gen 3) x8 bus
    •  7,800 MB/s peak bus bandwidth
    • 6,700 MB/s sustained bus bandwidth
  • Acquire images from the fastest and highest resolution cameras
    •  Highest data acquisition rate in the industry
    • 50 Gbit/s (5,000 MB/s) bandwidth from camera to host PC memory
  • Long cable support
    •  30 meters at CXP-12 speed (12.5 Gbps)
    • 72 meters at CXP-6 speed (6.25 Gbps)
    • 100 meters at CXP-3 speed (3 Gbps)
  • Use standard coaxial cables
    • A single inexpensive cable for data transfer, camera control, trigger and power supply
    • Top reliability and flexibility, performs in the harshest environments
  • Robust connectors
    •  HD-BNC (Micro-BNC) connectors for reliable connection
    • Trusted push and turn, bayonet-style positive lock
    • Allows for quick and easy connects and disconnects
  • Connect up to 4 cameras to a single Coaxlink card
  • Memento Event Logging Tool
    • Memento is an advanced development and debugging tool available for Coaxlink cards.
    • Memento records an accurate log of all the events related to the camera, the frame grabber and its driver as well as the application.
    • It provides the developer with a precise timeline of time-stamped events, along with context information.
    • It provides valuable assistance during application development and debugging, as well as during machine operation.
  • Direct GPU transfer
    • Sample programs for AMD DirectGMA and NVIDIA (CUDA) available.
    • Direct GPU transfer eliminates unnecessary system memory copies, dramatically lowers CPU overhead, and reduces latency, resulting in significant performance improvements in data transfer times for applications.
    • Direct capture of image data to GPU memory is available using AMD’s DirectGMA. Compatible with AMD FirePro W5x00 and
      above and all AMD FirePro S series products.
  • General purpose I/O lines
    • Compatible with a wide range of sensors and motion encoders.
    • High-speed differential inputs: Quadrature motion encoder support up to 5 MHz.
    • Isolated current-sense inputs: 5V, 12V, 24V signaling voltages accepted, up to 50 kHz, individual galvanic isolation up to 500VAC RMS.
    • Isolated contact outputs.
    • High-speed 5V-compliant TTL inputs/ LVTTL outputs.
  • High-performance DMA (Direct Memory Access)
    • Direct transfer into user-allocated memory
    • Hardware scatter-gather support
    • 64-bit addressing capability
  • Area-scan triggering capabilities
    • A trigger is used to start the acquisition when the part is in position. Hardware triggers come from the Coaxlink’s I/O lines. Software triggers come from the application.
    • An optional trigger delay is available to postpone the acquisition for a programmable time.
    • A trigger decimation function allows to skip some of the triggers.
    • Camera exposure control allows the application to control the exposure time of the camera.
    • When the acquisition starts, at the appropriate timing, the Coaxlink board generates a signal to control an illumination device connected to one of its output lines.
  • Line-scan triggering capabilities
    Coaxlink supports continuous web scanning (to inspect infinite, continuously moving surfaces without losing a single line)
    and discrete object scanning (to acquire the image of objects moving in front of the camera).

    • A trigger is used to start the acquisition when the part is in position. Hardware triggers come from the board’s I/O lines.
      Software triggers come from the application.
    •  After it is started, the acquisition either:
      • Continues indefinitely (for web inspection applications)
      • Continues for a programmable number of lines (to acquire the image of objects of a known length)
      • Continues until an end trigger is received (to acquire the image of objects of a variable length)
    • An optional trigger delay is available to postpone the beginning of the acquisition for a programmable number of lines.
  • Line-scan triggering capabilities
    • The Coaxlink frame grabber controls the camera scanning rate based on the signals received from a motion encoder. When the
      parts move faster, the acquisition line rate of the camera increases. When the parts move slower, the acquisition line rate of
      the camera decreases.
    • The Coaxlink boards interpret A/B signals from quadrature motion encoders to know in which direction (forward or backward)
      the part is moving.
    • Optionally, the Coaxlink can be instructed to acquire lines only when the object is moving forward or only when the object is
      moving backward.
    • A feature called Backward Motion Cancellation stops the acquisition when a backward motion is detected. The line acquisition
      automatically resumes when the motion is again in the forward direction, at the exact place where the acquisition was
      interrupted.
    • A Rate Converter allows the camera to acquire lines at any programmable resolution lower or higher than the resolution of the
      motion encoder. This gives the designer incredible freedom and flexibility during the development of the application.
    • A Rate Divider allows the camera to acquire lines at a resolution lower than the resolution of the motion encoder. It divides the
      frequency of the incoming encoder signal by a programmable integer.
  • Flexible line-scan camera operation with the rate converter.
    • The rate converter is a smart, programmable frequency multiplier/divider.
    • Used with motion encoders and line-scan cameras, it allows the user to choose the aspect ratio of the pixels in the image.
    • It provides a way to calibrate the acquisition chain to easily reach square (1:1 aspect ratio) pixels.
  • The Coaxlink driver includes the following tools:
    • Genicam Browser: An application giving access to the GenICam features exposed by the GenTL Producer(s) in the system.
    • GenTL Console: A command-line tool giving access to the functions and commands exposed by the Euresys GenTL Producer.
  • Compliant with Genicam
    Including support for

    •  GenApi
    • The Standard Feature Naming Convention (SFNC)
    • GenTL
  • Windows and Linux drivers available
    • Including support for the AArch64 64-bit ARM architecture for Linux

Applications

  • Machine Vision for the Electronic Manufacturing Industry
    • High speed image acquisition for AOI, 3D SPI, 3D lead/ball inspection machines.
    • Very high resolution line-scan image acquisition for Flat Panel Display inspection and solar cell inspection
  • Machine Vision for the General Manufacturing Industries
    • High frame rate image acquisition for inspection machines
    • Line-scan image acquisition for surface inspection machines
    • Line-scan image acquisition for textile inspection
    • Image acquisition for robots
  • Machine Vision for the Printing Industry
    • High speed line-scan image acquisition for printing inspection machines
    • Video Acquisition and Recording
    • High-frame-rate video acquisition for motion analysis and recording

Product Specifications

Euresys (Frame Grabbers)

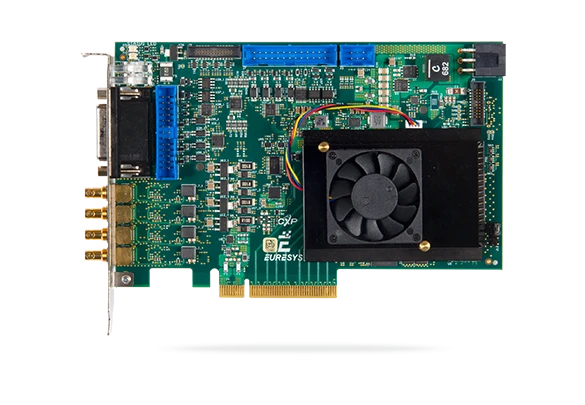

Euresys 3603 Coaxlink Quad CXP-12-Photo-1
