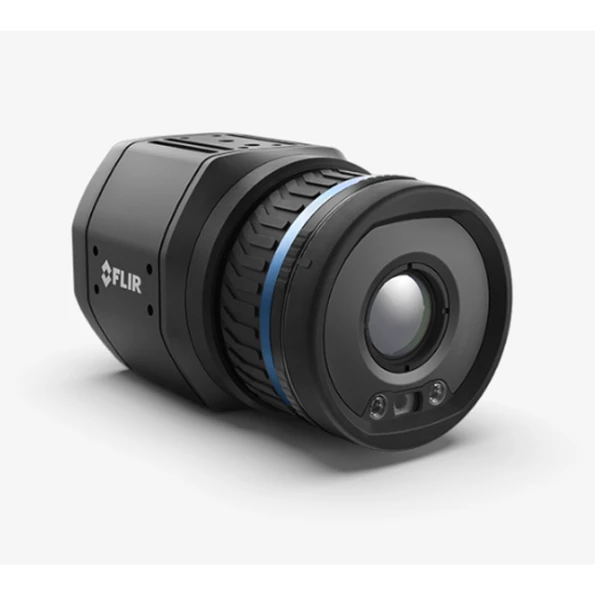

Flir A400 Professional Science Kit

Highlights:

FLIR A400 and A700 Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software. The Standard kit includes a FLIR A400 or A700 Image Streaming camera, 24° lens with automatic/remote and manual focusing, as well as FLIR Macro Mode. The Professional kit has the added benefits of MSX® image enhancement, radiometric data transmission over Wi-Fi, and a close-up lens for accurate thermal measurements on small components.

Features:

SIMPLIFIED ANALYSIS & COLLABORATION
- FLIR Research Studio’s simple Connect – View – Record – Analyze workflow helps you obtain and analyze thermal results quickly
ACCURACY YOU CAN COUNT ON
- Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement
UNMATCHED CONNECTIVITY
- Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)

Product Specifications

Accuracy

±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F)
Detector Type

Uncooled microbolometer
Dynamic Range

16-bit
IR Resolution

640 × 480 pixels
FOV

24° × 18°
Focal Length

N/A
Object Temperature Range

-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F)
Packaging Size

123mm × 77mm × 77 mm
Thermal Sensitivity/NETD

Lens dependent: <30 mK to <50 mK
Macro Mode

Included
Weight

0.82 kg (1.8 lb)
Digital I/O connector type

M12 Male 12-pin A-coded (shared with ext. power)
Digital Inputs

2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Outputs

3× opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)
Ethernet Communication

GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary)
Ethernet Connector Type

M12 8-pin X-coded, female
Ethernet Power

Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Image Streaming

Yes
WiFi

Connector: Female RP-SMA Standard: IEEE802.11a/b/g/n Connections: Peer to peer (ad hoc) or infrastructure (network)
Command & Control

Gigabit Ethernet (RTSP, GigE Vision), Wi-Fi
Encapsulation

IEC 60529, IP 54, IP66 with accessory
Mounting

UNC ¼″-20 on 2 sides 4× M4 on 4 sides
Operating Temperature Range

-20°C to 50°C (-4°F to 122°F): • -20°C to 40°C (-4°f to 104°F) (in free air) • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) • Maximum camera case temperature: 65°C (149°F)
Shock

IEC 60068-2-27, 25 g
Storage Temperature Range

IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours
Vibration

IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
Available Lenses

6°, 14°, 42°
Detector Pitch

24 µm
Digital Data Streaming to PC

Gigabit Ethernet (RTSP, GigE Vision) or Wi-Fi stream to workstation running included Research Studio Software
Focus

One-shot contrast, motorized, and manual
Image Frequency

30 Hz
Image Modes

MSX®, Picture-in-picture, blending, and fusion
Lens

24°, 2.0x Macro
Lens Identification

Automatic
Minimum Focus Distance

2.0x Macro: 18 mm (0.71 in) 24°: 0.15 m (0.49 ft) 24° with Macro Mode: 17 mm (0.67 in) 42°: 0.15 m (0.49 ft) 14°: 1.0 m (3.28 ft) 6°: 5.0 m (16.4 ft)
Picture-in-Picture

Yes
Spectral Range

7.5–14 µm
MSX Enhancement - Picture in Picture

Yes
Visible Camera

5 MP
Power Cable Configuration

Power over Ethernet or External
Power

24/48 V DC 8 W max
Power Connection

M12 12-pin A-coded, male (shared with Digital I/O)
External Voltage

Allowed range 18–56 V DC; 8W max
