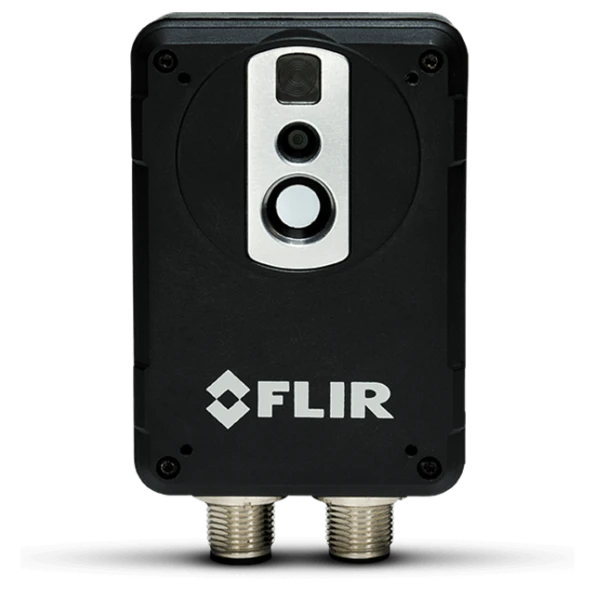

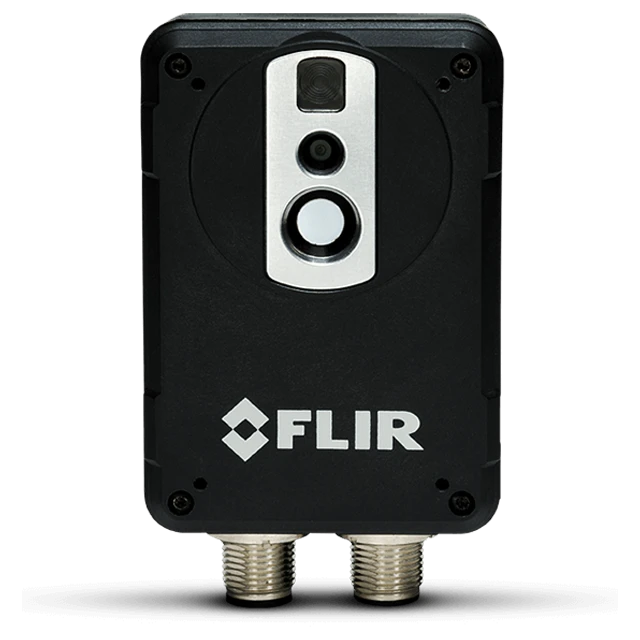

Flir Thermal Imaging Camera AX8

Highlights:

FLIR AX8 combines thermal imaging with a visual cameras in one small, affordable package for continuous temperature monitoring and alarming. The AX8 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment. Compact and easy to install, the AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.

Features:

Automatic Analysis & Alarms
- Streaming video output means the AX8 can provide live video of every installation plus automated alarming.
Industrial Protocols
- Ethernet/IP and Modbus TCP compliant so analysis and alarm results can be easily shared to a PLC.
Compact & Easy to Install
- The AX8 measures only 54 x 25 x 95 mm, making it easy to install in space constrained areas for uninterrupted condition monitoring.

Product Specifications

Accuracy

±2°C (±3.6°F) or ±2% of reading (+10 to +100°C at +10 to +35°C ambient)
Alarm Functions

Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set
Alarm Output

Digital Out, store image, file sending (ftp), email (SMTP), notification
Detector Type

Focal Plane Array (FPA), uncooled microbolometer
IR Resolution

80 × 60 pixels
Focal Length

N/A
Object Temperature Range

7.5 µm to 13.5 µm
Packaging Size

210mm x 142mm x 70mm
Sensitivity

Minimum 10 Lux without illuminator
Set-up Commands

Date/time, Temperature °C/°F
Thermal Sensitivity/NETD

< 0.10°C @ +30°C (+86°F) / 100 mK
Web Interface

Yes
Ethernet

Control, result and image
Ethernet Connector Type

M12 8-pin X-coded
Ethernet Power

Power over Ethernet, PoE IEEE 802.3af class 0.
Ethernet Protocols

Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
Ethernet Standard

IEEE 802.3
Ethernet Type

100 Mbps
Ethernet Video Streaming

Yes
Storage Media

Built-in memory for image storage
Atmospheric Transmission Correction

Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Bump

25 g (IEC 60068-2-29)
EMC

EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission)
Emissivity Correction

Variable from 0.01 to 1.0
Encapsulation

IP67 (IEC 60529)
Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles
Operating Temperature Range

0°C to +50°C (32°F to +122°F)
Storage Temperature Range

–40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2
Vibration

2 g (IEC 60068-2-6)
Automatic Image Adjustment

Continuous
Built-in Digital Camera

640 × 480
Camera Size

54mm × 25mm × 79mm (w/o connectors 54mm × 25mm × 95mm (w/ connectors)
Color Palettes

Color palettes (BW, BW inv, Iron, Rain)
Digital Camera FOV

Adapts to the IR lens
FOV

48° × 37°
Focus

Fixed
Image Modes

Thermal, Visual, MSX (IR-image with enhanced detail presentation)
Image Streaming Formats

Motion JPEG, MPEG, H.264
Image Streaming Resolution

640 × 480
Spectral Range

7.5–13 µm
Area

6 boxes with max./min./average
External Optics & Windows Correction

Automatic, based on input of optics/window transmission and temperature
Measurement Corrections

Global object parameters
Measurement Presets

Yes
Optics Transmission Correction

Automatic, based on signals from internal sensors
Reflected Apparent Temperature Correction

Automatic, based on input of reflected temperature
Spot Meter

6.0
External Power Connector Type

M12 8-pin A-coded (Shared with digital I/O)
External Power Operation

12/24VDC, 2 W continuously/ 3.1 W absolute max
Voltage Allowed Range

10.8–30VDC
Packaging

Infrared camera with lens, printed documentation, user documentation CD-ROM
File Formats

JPEG+FFF
Image Storage Mode

IR, visual, MSX
