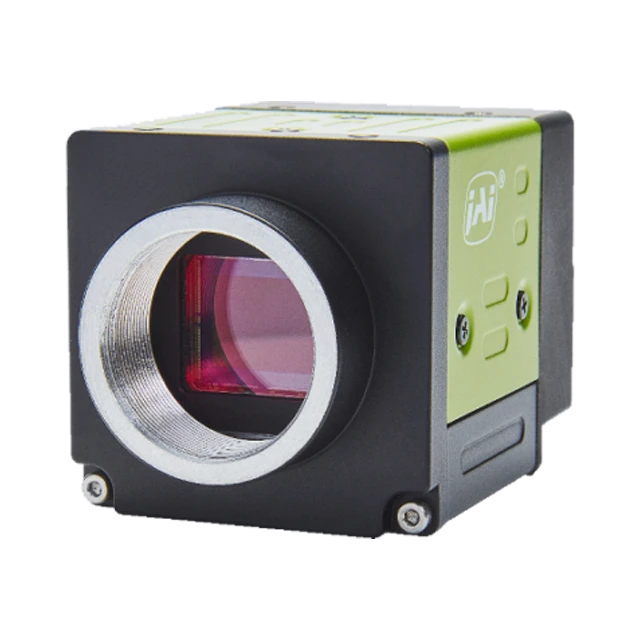

JAI Spark SP-5000M-CXP2

Highlights

JAI provides a wide selection of single-sensor monochrome area scan cameras with resolutions ranging from 2.35 to 45 megapixels. Cameras are built around state-of-the-art sensor technology including the latest CMOS global shutter imagers.All cameras are designed to perform in tough environments to withstand operating conditions with high vibration effects (up to 10G) and high shock occurrence (up to 80G). This classifies them among the best in relation to industrial reliability and durability.

Product Description

The SP-5000M-CXP2 provides 5-megapixel monochrome resolution at up to 211 fps over a two-lane CoaXpress interface. 5-micron square pixels provide excellent sensitivity while flexible ROI capabilities enable the camera to be tailored to a wide range of high performance applications.

High throughput: At 211 frames per second, the SP-5000-CXP2 provides a combination of speed and resolution well suited to many high speed inspection applications, event capture systems, and much more.

A Versatile Performer – in Monochrome or Color: Available in monochrome or color models, the SP-5000-CXP2 supports single and multi-ROI functions enabling users to create the exact resolution and optical format they require for their high performance application.

Auto exposure and High Dynamic Range: Monochrome models feature a built-in HDR function that lets users to extend the camera’s dynamic range up to 84 dB. In addition, all models feature a P-iris connection and JAI’s Auto Level Control for intelligent exposure control in dynamic lighting conditions..

Features

  • 5-megapixel resolution at up to 211 fps.
  • 1” CMOS imager with global shutter.
  • Monochrome output.
  • 5 µm square pixels provide excellent sensitivity and optical flexibility.
  • Analog and digital gain controls for less quantized noise.
  • P-iris or programmable 3-axis control for motorized lenses, pan/tilt heads, and other analog accessories.
  • Industrial grade performance with 80G shock, 10G vibration, and -45°C to +70°C operating range.
  • 8/10/12-bit CoaXpress output supporting power over the interface or via 12-pin connector.
