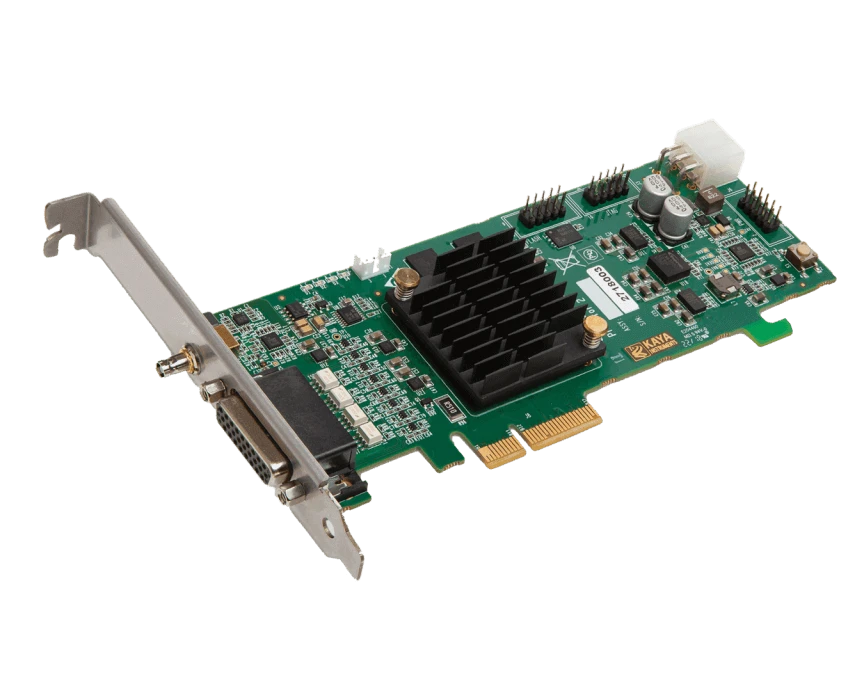

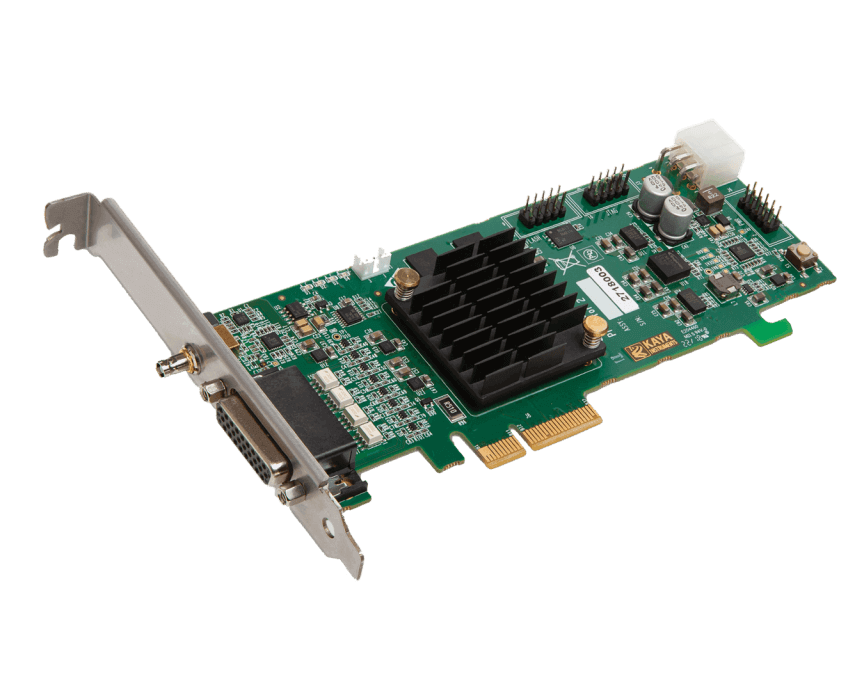

KAYA Instruments Predator CoaXPress KY-FGP-II

Highlights

  • Single CoaXPress 12.5Gbps channel
  • PCIe Gen2 x4 interface with up to 12.5Gbps throughput
  • CoaXPress V2.0 compliant
  • On board image processing
  • PoCXP support with 20W
  • Flexible GPIO interface
  • Sophisticated GUI and SDK support

Features

Predator II is a low-cost Frame Grabber supporting CoaXPress 2.0 standard and certified by the Japan Industrial Imaging Association (JIIA). The Predator II is capable of receiving video streams from a single CoaXPress link. The Frame Grabber supports standard CoaXPress bitrates up to 12.5 Gbps including PoCXP. This CoaXPress Frame Grabber is ideally suited for industrial, defense and aerospace Machine Vision Systems applications. The Predator II can easily receive video stream on the CoaXPress link and transmit it to computer memory through the PCIe interface. This product also provides an external on bracket GPIO for machine control signals such as triggers, shaft encoders, exposure control and general I/O, which can be controlled aside the video stream acquisition. The Predator II uses standard Micro-BNC connector as a CoaXPress interface to the camera and standard D-sub Panel Mount connector for general purpose I/O. The Frame Grabber utilizes PCIe Gen2 x4 links for communication with Host PC for video uploading and configuration.

Product Specifications
