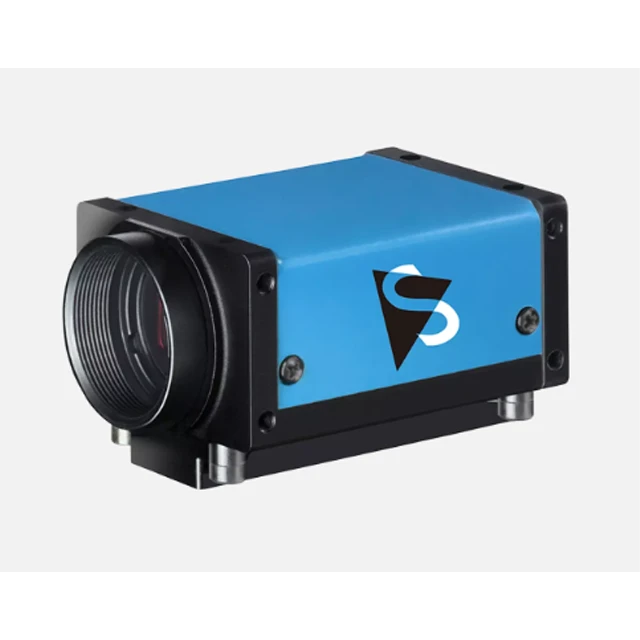

The Imaging Source Industrial 38 DFK 38UX255

Features

1 inch Sony CMOS Pregius sensor (IMX255LQR)
4,096×2,160 (8.8 MP), up to 42 fps
Global shutter
Trigger and I/O inputs

Product Specifications

Dynamic range

8/12 bit
Video output format

8-Bit Monochrome, 16-Bit Monochrome
IR cut filter

Yes
Sensor type

CMOS Pregius
Sensor specification

IMX255LQR
Shutter

Global
Format

1 inch
Resolution

4,096 x 2,160
Frame Rate

42 fps
Megapixel

8.8 MP
Pixel Size

H: 3.45 µm, V: 3.45 µm
Lens mount

C/CS
Interface

USB 3.1
Supply voltage

4.75 VDC to 5.25 VDC
Current consumption

approx 750 mA @ 5 VDC
Auto iris control

No
Trigger

Yes
I/Os

Yes
Dimensions

H: 29 mm, W: 44 mm, L: 60 mm
Mass

110 g
Shutter

20 µs to 4 s
Gain

0 dB to 48 dB
White balance

-2 dB to 6 dB
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
