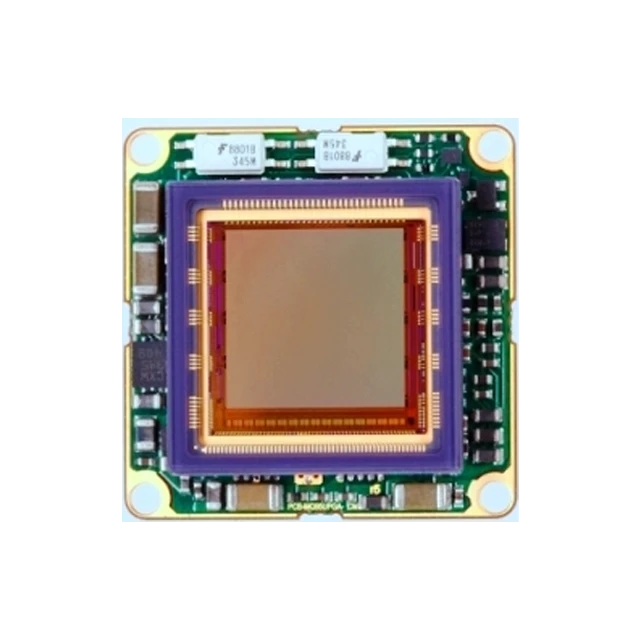

Ximea xiQ USB3.0 MQ042MG-CM-BRD

Highlights

The Ximea xiQ USB3.0 MQ042MG-CM-BRD industrial camera is designed to be tiny in size, low in mass and with high efficiency, this series is a tremendous asset in the machine vision and mobile scenarios. Its compact design offers superb options in mobile solutions. The extremely low power consumption results in excellent properties in heat-sensitive environments. The semi-housed version of the Ximea xiQ USB3.0 MQ042MG-CM-BRD industrial camera comes as a complete camera with a cutout in the housing for a flex ribbon connection. It relieves the integrator of the necessity to handle sensitive board-level units where sensors and electronics are easily damaged in an integration process. The flat ribbon cable saves valuable z-axis space in cramped environments. Data, power, and IOs all run through this cable making integration a breeze. The Ximea xiQ USB3.0 MQ042MG-CM-BRD industrial camera is equipped with an AMS CMOSIS CMV4000 sensor, 2048 x 2048 resolution, and 4.2 megapixels.

Ximea xiQ USB3.0 MQ042MG-CM-BRD Features

  • Smallest dimensions: 26 x 26 mm, 8 grams
  • 4.2 MP at 90 fps (up to 180 with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant

what is xiQ?

  • Ultra-compact mini camera– Only 26.4 x 26.4 x 26 mm small and mere 27 grams
  • Fastest – High speed, high frame rate: 500fps at VGA and 90fps at 4Mpix resolutions
  • Cool – Low power consumption with 1.0 to 1.8 W and minimal heat dissipation
  • Powerful potential – 5 Gbit/s interface 400 MB/s data throughput
  • Supported – USB3 under Windows 7 and 10, macOS, Linux, ARM, and various Machine Vision Libraries
  • Software interfaces – GenICam / GenTL and highly optimized API / SDK for Image Processing
  • AIA standard – USB3 Vision standard compliant
  • Industry-standard interface – Compatible with USB 3.1 Gen1 SuperSpeed specification
  • Connectivity and Synchronization – Programmable Opto-isolated input and output, 3 status LEDs
  • Easy deployment – Range of accessories and widest hardware and software interoperability
  • User friendly – Intuitive and simple to use API, easy switch from C to CS mount and more
  • Highly Customizable – Available at Board level (single PCB) and with different connector types
  • Time-proven – In production since the end of 2011
  • Cost-efficient – Excellent value for the price, low TCO, and fast ROI

Ximea xiQ USB3.0 MQ042MG-CM-BRD Applications

  • Ultra-fast 3D scanning
  • Medical Imaging, Biometrics
  • Precision Moldings, Electronics, Photovoltaics, Robotic Welding
  • Miniature and accurate robotic arms
  • Industrial and Factory Automation, Machine Vision
  • Photogrammetry, Videogrammetry, Surveying
  • High definition Motion capture, Cinematography, and Entertainment
  • Material and Life science microscopy (IR-DIC)
  • Marking and Labeling Verification, AOI, Food and Print inspection
  • 360 Panorama
  • Packaging and Kitting, Defect detection, Code recognition, OCR / OCV
  • Gauging, Manufacturing, Alignment and Assembly, Metrology
  • Ophthalmology and Retinal imaging
  • ISR – Intelligence, surveillance, and reconnaissance, Security
  • Rapid process capturing, e.g. golf club swings, baseball, tennis, hockey
  • VR and AR (virtual or augmented reality), HMC (Head-mounted camera)
  • Intelligent Transportations Systems (ITS), Autonomous vehicles
  • Open road tolling and Traffic monitoring, Optical Image Stabilizer (OIS)
  • ANPR / ALPR
  • Face recognition, Eye Tracking, Body scanner, People counting
  • ideal for UAV / UAS (drones) and  Lola (Low Latency audiovisual streaming system)

Product Specifications
