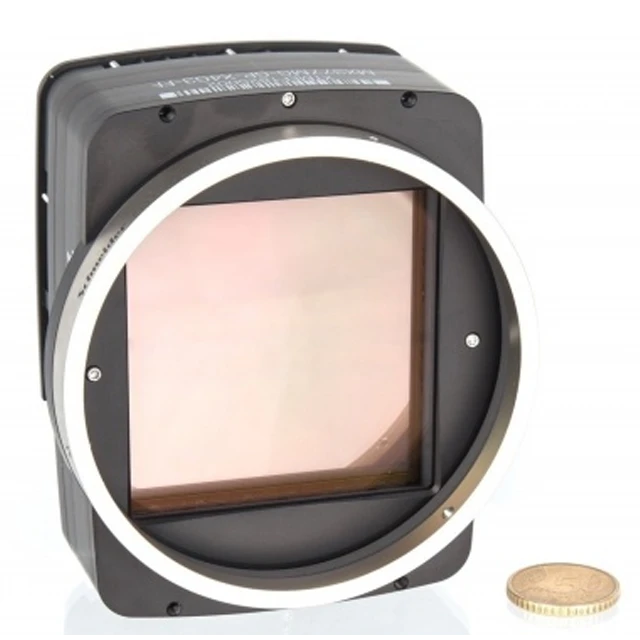

Ximea xiX MX377MR-GP-F

Highlights

The Ximea xiX MX377MR-GP-F industrial camera offers one of the largest sCMOS sensors available today: The Gpixel GSENSE6060 FSI with 37.7 million 10 μm pixels offers imaging performance on par with the best CCDs in a high-speed CMOS architecture. Existing CCDs have thus far remained the go-to technology for scientific measurements, in spite of being unable to match the pace of CMOS innovation. The Ximea xiX MX377MR-GP-F industrial camera delivers scientific imaging capabilities with high dynamic range and low noise – at high speed. The camera was also designed with cooling for low light level applications. Several versions of the GSENSE6060 FSI sensor can be provided, including frontside (FSI) or backside (BSI) illuminated models. With the sCMOS BSI sensor, the camera reaches a maximum quantum efficiency of 95 percent. Due to the large sensor format of 60 x 60 mm, 6 k by 6 k resolution, and 10 μm pixel size, it is a perfect fit for applications demanding a medium to large format sensor. The output signal from the GSENSE6060 FSI pixels is processed by two readout amplifiers (hi and lo) allowing an HDR readout (2 x 12 or 2 x 14 bit ADC) with up to 90 dB dynamic range. All this with a frame rate of up to 46 fps and a full well capacity of 110 Ke-.

Ximea xiX MX377MR-GP-F Features

  • 37.7 Mpix
  • Available with Multiple sensor Grades of Gpixel GSENSE6060 FSI
  • Large sensor and large pixel camera ideal for Astronomy
  • Frontside illuminated sensors
  • Dynamic range 90 dB in HDR mode
  • Enormous Full well capacity 110ke-
  • High Quantum efficiency
  • Low dark current and readout noise
  • Fiber optic bonding to the sensor with scintillator possible
  • Thermoelectric Peltier module with additional water or air cooling
  • Able to reach 46 Fps at 12 Bits

Applications

The Ximea xiX MX377MR-GP-F industrial camera model was primarily designed for Astronomy applications. However, the extraordinary performance of this camera makes it a perfect fit for other fields of Material and Life Science like High energy physics, Medical, Biological, TEM, and others. XIMEA is working with multiple companies on applications for astronomical and Space Situational Awareness (SSA).
